Yanmar Bolt-On Rubber Pads

DuraLine Bolt-On Rubber Pads for Yanmar Excavators

DuraLine bolt-on rubber pads for Yanmar excavators, listed by machine model with the pad width, link pitch and quantity per machine on every product. The 23 models covered include Vio50, Vio75 and SV100. Each pad is matched to its make and model and manufactured from premium quality, abrasion-resistant rubber in ISO 9001 approved facilities.

A bolt-on pad bolts through a predrilled steel track shoe, a semi-permanent conversion that lets a steel-tracked Yanmar work on roadways, concrete hard-standing and other finished surfaces without risk of damage. Every pad carries a 6-month warranty.

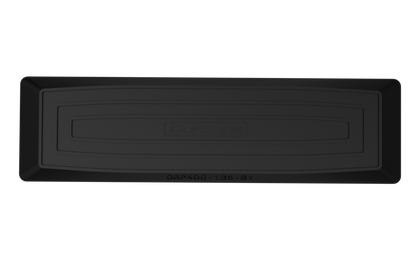

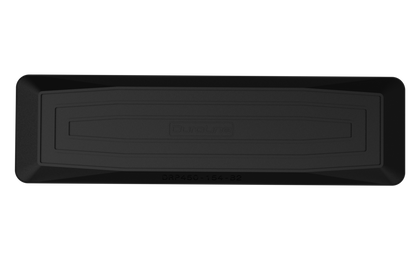

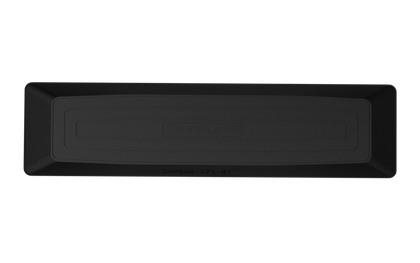

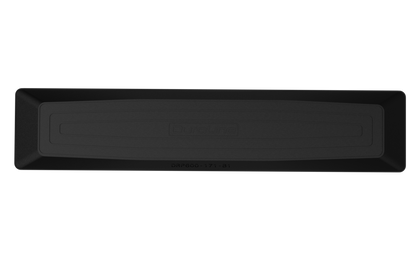

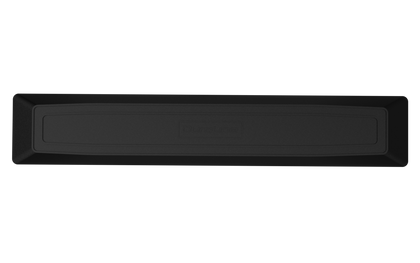

Yanmar bolt-on pads run from 400mm to 700mm wide on 135mm, 154mm and 171mm link pitch. One pad fits each track shoe, so a Yanmar Vio50 takes 76 and a Yanmar Vio75 takes 78 per machine, as shown on every product page. Measure the shoe width and the pitch between two adjacent pins to confirm the size, or send the model and we will check it against our product reference guide.

Order before 4:30pm for next working day UK delivery on stocked pads. To confirm the pad, send the machine model and shoe width to the team. Browse all bolt-on rubber pads, read the bolt-on pads guide for sizes, fitting and the comparison with clip-on, or see clip-on rubber pads for pads that come off between jobs.
