SANY Top Rollers

DuraTrack top rollers for SANY excavators, listed by machine model

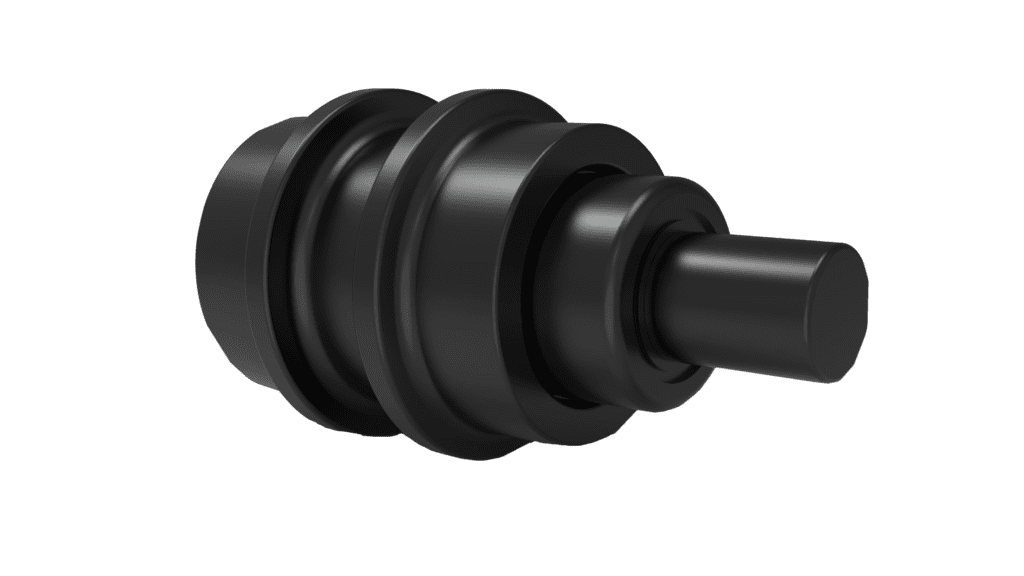

Top rollers, also called carrier rollers, guide the track over the undercarriage frame on its return run. DuraTrack top rollers are listed for SANY models including SY75C, SY135C, SY155U, SY215C, SY215C LC, SY235, SY235C, SY235C LC, SY240C and SY245H. See also: SANY idlers, SANY sprockets.

DuraTrack rollers use forged shells, friction welded or submerged arc welded and heat treated by differential quenching or through hardening, with hardened shafts in forged alloy or rolled carbon steel. The range covers single flange, double flange and shaft type carrier rollers, manufactured to OEM specification in ISO 9001 approved facilities, with reinforced flanges and heavy-duty sealing to extend wear life.

The machine model and serial number identify the roller, and the number of carrier rollers on each side and the markings on the side of the old roller confirm the match. Wide track shoes increase roller tread and flange wear, so use the narrowest shoe that still gives good flotation.

Order before 4:30pm for next working day UK delivery on stocked rollers. Our free undercarriage inspection records top roller and bottom roller wear against new dimensions, so both sets can be planned together. Send the machine model and serial number to the team, or browse all top rollers, bottom rollers and the wider DuraTrack undercarriage range.
