Wirtgen Bottom Rollers

DuraTrack bottom rollers for Wirtgen milling machines and slipform pavers, listed by machine model

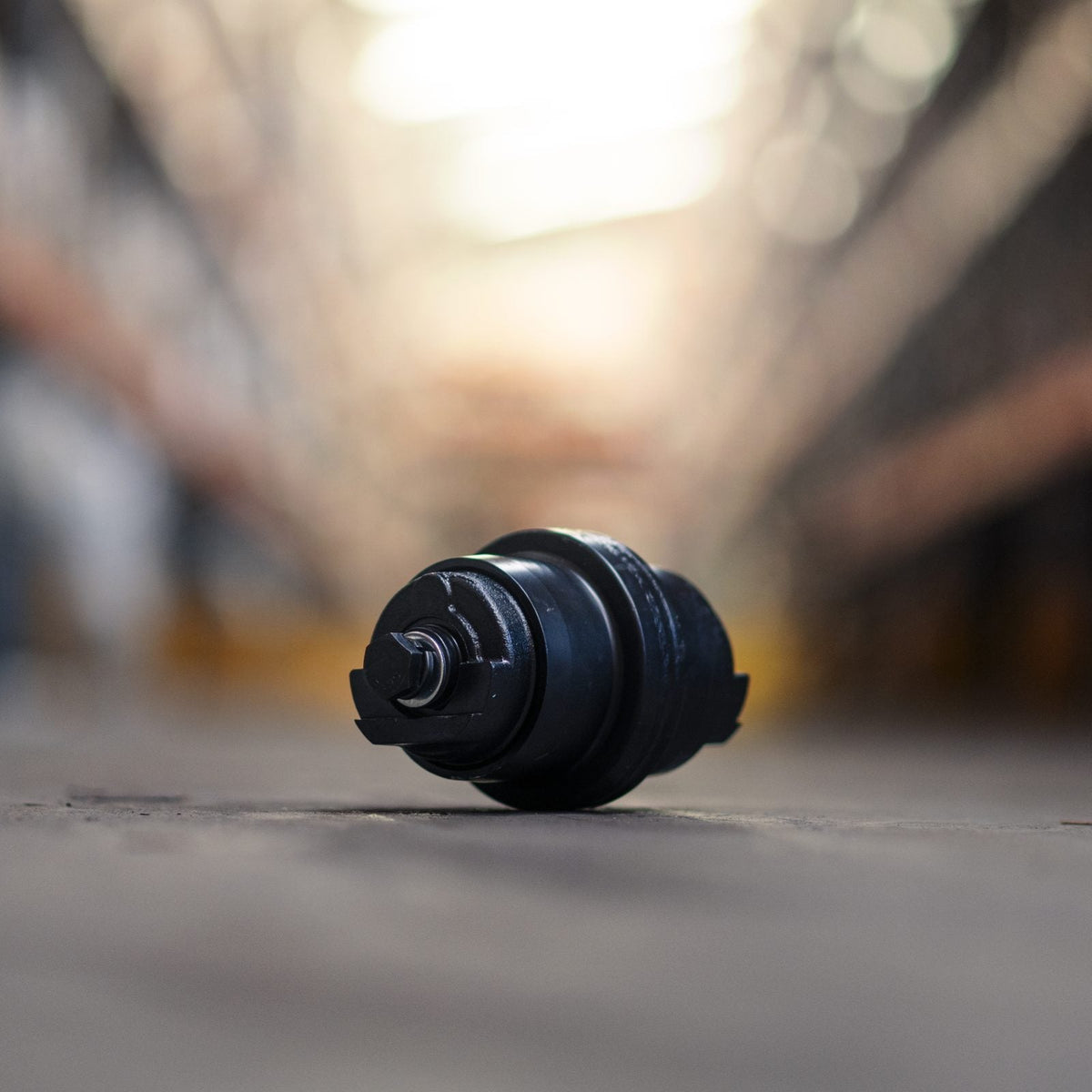

Bottom rollers, also called track rollers, carry the weight of the machine along the underside of the track frame and transfer it through the track to the ground. DuraTrack bottom rollers are listed for Wirtgen models including 2000DC, SP 25, SP 500, SP150, W100F, W120Fi, W130Fi, W150i, W200 and W200Hi. See also: Wirtgen idlers, Wirtgen sprockets.

DuraTrack rollers use forged shells, friction welded or submerged arc welded and heat treated by differential quenching or through hardening, with hardened shafts in forged alloy or rolled carbon steel. The range covers single flange and double flange bottom rollers, manufactured to OEM specification in ISO 9001 approved facilities. A double flange roller gives more guidance to the track link.

The machine model and serial number identify the roller, and the number of track rollers on each side and the markings on the side of the old roller confirm the match. Change the bottom rollers as a set: a single new roller sits proud of the worn ones and increases the wear rate on everything around it. Wide track shoes also increase roller tread and flange wear, so use the narrowest shoe that still gives good flotation.

Order before 4:30pm for next working day UK delivery on stocked rollers. Our free undercarriage inspection records bottom roller and top roller wear against new dimensions, so both sets can be planned together. Send the machine model and serial number to the team, or browse all bottom rollers, top rollers, the track roller guide and the wider DuraTrack undercarriage range.
